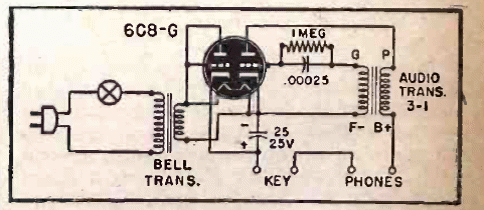

This oscillator was found in documentation from 1945. It uses high impedance headphones, and the frequency depends on the oscillator. The circuit is powered from the mains by a single low voltage transformer.
Telegraph Oscillator (T961E)
- Details
- Written by: Newton C. Braga
