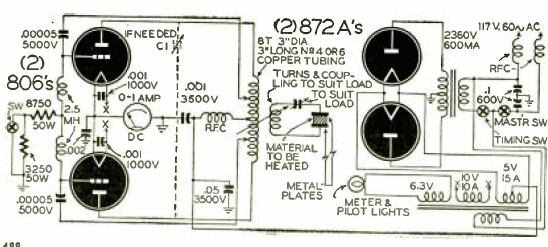

The circuit shown uses two powerful type 806 transmission tubes. We found it on a Radio Craft from 1946. The circuit has a power of 1 kW and is powered by a very high voltage, in the order of 3000 V obtained from a 2360 V transformer. with 600 mA of current.
