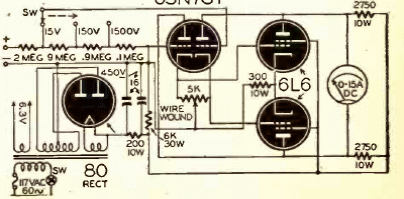

In the figure we have the diagram of a 4-tube electronic voltmeter published in a magazine of 1946. The circuit has scales of 5, 15 and 1500 V and precision resistors must be used. The non-indicated tube is 6SN7.
