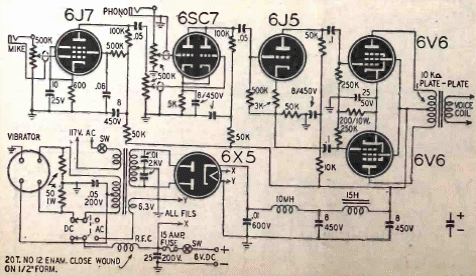

In the figure we have a good power amplifier with 6V6 tubes. It is one of many configurations of this type. We found it in a Radio Craft from 1946. The circuit has a push pull output stage.
AC-DC Amplifier (T1099E)
- Details
- Written by: Newton C. Braga
