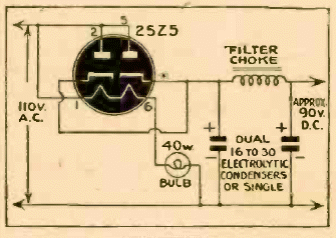

A power supply with the 25Z5 can be constructed using a 40W light bulb (do not use other wattage) to obtain the required 110V mains voltage drop as indicated. The circuit has no grid isolation.
25Z5 Power Supply (T696E)
- Details
- Written by: Newton C. Braga
