Small 2-tube amplifier (T685E)

Details
Written by: Newton C. Braga

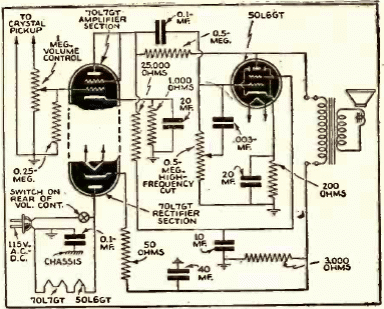

This small amplifier of a few watts of power has good sound quality, being indicated for portable or low cost turntables. The circuit is from a 1943 publication.
