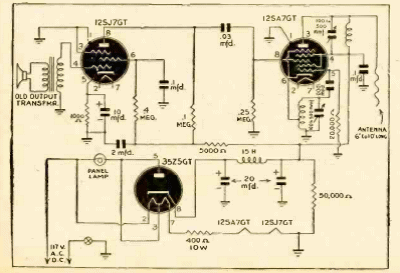

This 1943 circuit uses three tubes with wires in series and is powered directly from the mains. The circuit operates in the medium wave band and has a range of a few tens of meters. The input is for a magnetic phonocaptor, but it can be adapted for other types of phonocaptors.
