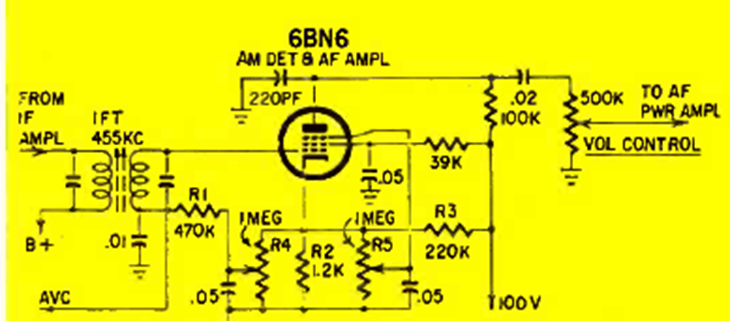

The diagram from a Radio Electronics from June 1964 is of an AM detection stage and at the same time amplifier of a common receiver with an IF of 455 kHz. The circuit was common in period receivers.
| Clique na imagem para ampliar |
AM detector and amplifier 6BN6 (T791E)
