6 tube audio amplifier (T865E)

Details
Written by: Newton C. Braga

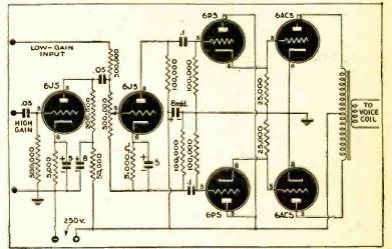

With a few tens of watts, this circuit was found in an American publication from 1944. The circuit does not show the power supply and for greater power it uses tubes in parallel in the output stage.
