Oscillator for telegraphy (T1155E)

Details
Written by: Newton C. Braga

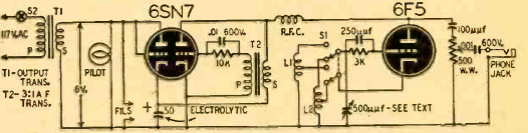

This oscillator for Morse code practice was found in Radio Craft in May 1947. The circuit uses two tubes only operating at low voltage. The listening is in headphones and the frequencies selected by two coils.
