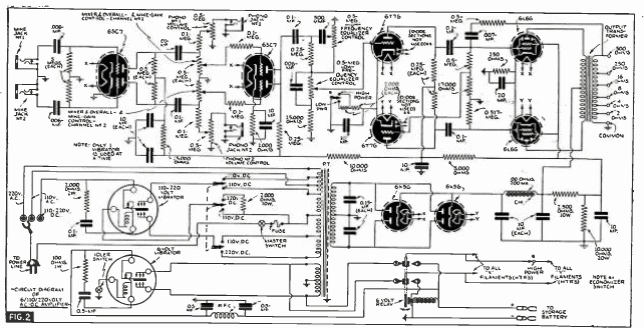

This 25 W amplifier was found in a publication from 1940. The output is push-pull with tubes used in the phase inverter in a transformer. The preamplifier tubes are double, and it has two inputs, observe the power supply step with voltage selector. Two double rectifier tubes are used.
| Clique na imagem para ampliar |
