Antique Multimeter (T840E)

Details
Written by: Newton C. Braga

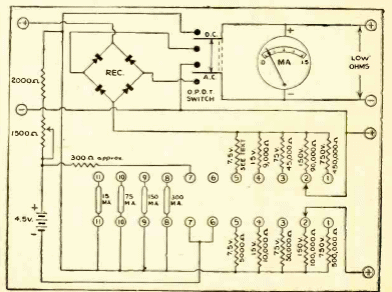

In the figure we have the circuit of a multimeter elaborated with few components. The circuit can serve as a basis for reusing an old instrument or for restoration work. The resistors used must be precision.
