Phonograph Oscillator (T1118E)
- Details
- Written by: Newton C. Braga

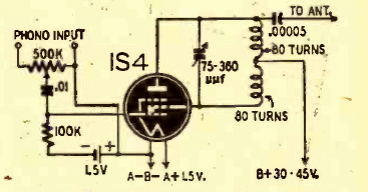

This circuit is from a Radio Craft from January 1947. The circuit operates in the medium wave band powered by the voltages shown in the diagram. The range is a few tens of meters.
