Benchtop Power Supply (T694E)

Details
Written by: Newton C. Braga

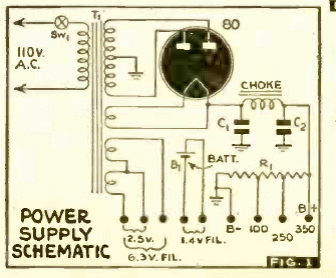

This power source that can be made with scrap components was found in documentation from 1943. The current depends on the transformer, as well as the voltages that can be obtained. R1 is wire and its value depends on the maximum current.
