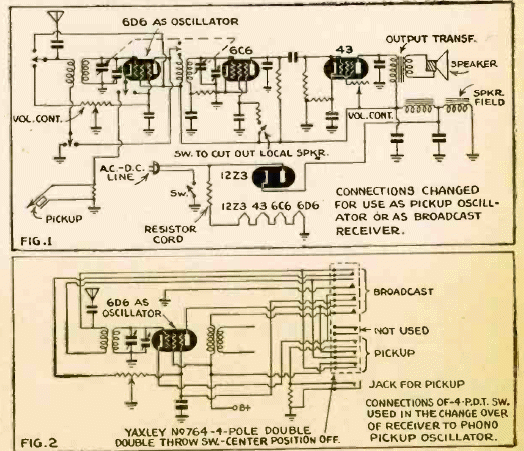

This circuit from a 1943 documentation shows how to adapt an ordinary tube radio receiver to also operate as a phonograph oscillator. In this role, it transmits signals from a turntable pickup to an ordinary AM radio nearby.
Adapter for Phonograph Oscillator (T718E)
- Details
- Written by: Newton C. Braga
