Domestic broadcaster (T468E)

Details
Written by: Newton C. Braga

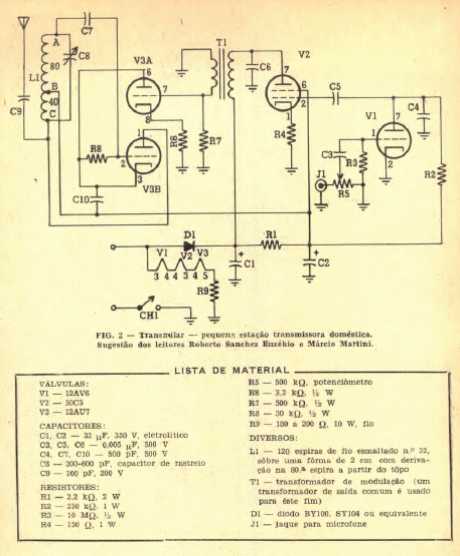

This circuit was obtained from a Popular Electronics of April 1967. The circuit has little power with the medium wave band reaching a few hundred meters.
