Dual Tube Receiver (T970E)

Details
Written by: Newton C. Braga

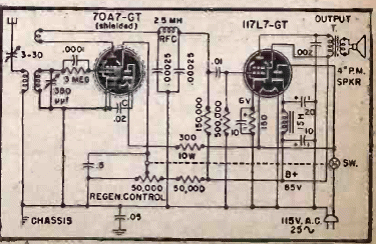

Found on a Radio Craft from July 1945, this medium wave receiver is mains powered. Listening is via headphones and the system is regenerative, requiring an external antenna.
