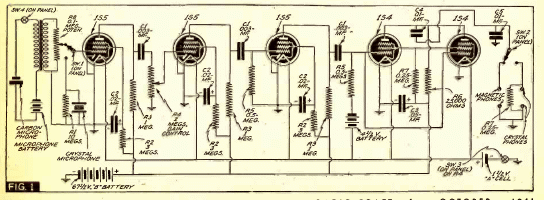

Intended for hearing aid applications, this circuit was found in a documentation from 1941. There are 5 ultraminiature tubes of the time with a 1 V filament. The output is a few milliwatts for use in headphones. Two batteries were still used, one of which was high voltage.
