Intruder Alarm (T1129E)

Details
Written by: Newton C. Braga

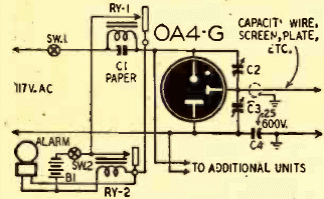

This circuit was found in a Radio Craft from February 1947. The circuit is mains powered. The relay used is of a high voltage type and the sensor is capacitive triggering a gas tube of the time.
