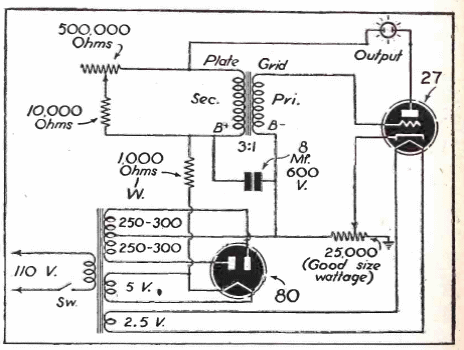

This 1942 circuit uses a period tube feeding a special period lamp. The tube is configured as an oscillator with the frequency adjusted on a 500 k ohm potentiometer. The transformer is of special type.
Tube Strobe (T802E)
- Details
- Written by: Newton C. Braga
