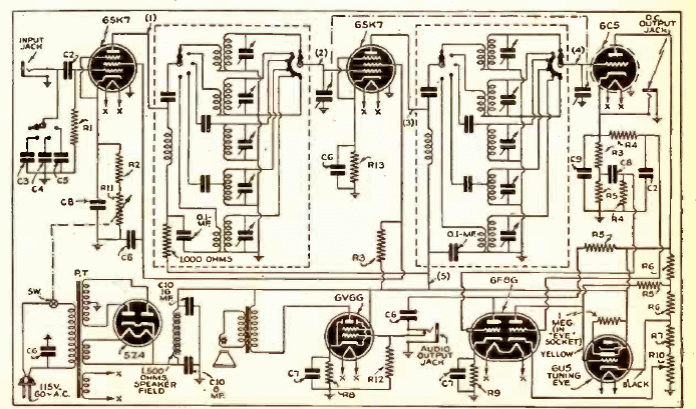

This sophisticated signal tracer was found in a publication from 1941. There are 7 tubes, two of which are double to offer good gain and also the possibility of operating with RF signals. The circuit used a source with a transformer for greater security. The publication showed how to assemble it.
