4W Amplifier (T717E)

Details
Written by: Newton C. Braga

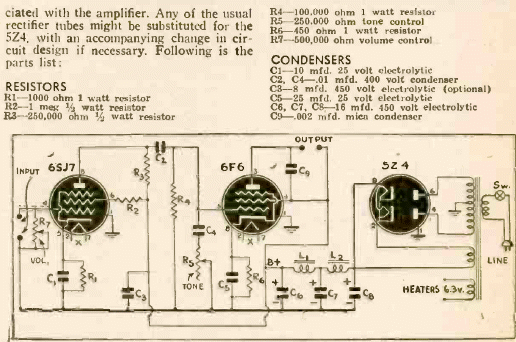

This small 3-tube amplifier was found in a publication from 1943. The power supply uses a tube transformer with full wave rectifier. The circuit is suitable for turntables and other applications.
