Laptop power supply (T826E)

Details
Written by: Newton C. Braga

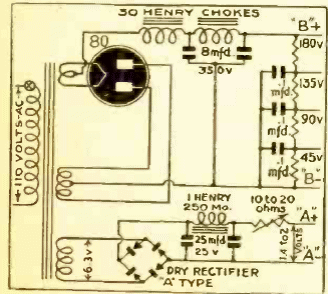

This circuit supplies power to tube receivers that use batteries. The circuit is from a 1942 documentation. The transformer must have a high voltage secondary between 125 and 250 V and a current of at least 20 mA.
