Farnsworth ET064 Receiver (T1031E)

Details
Written by: Newton C. Braga

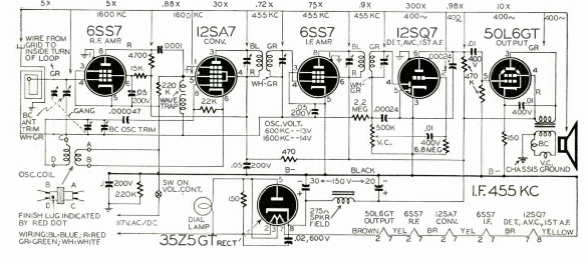

This commercial diagram is of a little-known brand receiver here. The tube circuit has a common configuration at the time. The diagram is from a 1946 publication.
