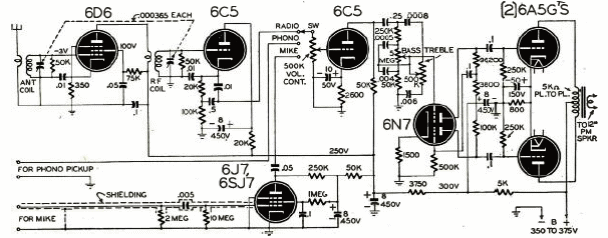

We found this circuit in a Radio Craft from 1946. It brings together an MW tuner and an amplifier with different types of inputs in a 7-tube device. Note that the circuit does not indicate the power supply, but only the operating voltages.
Amplifier and MW Tuner (T1052E)
- Details
- Written by: Newton C. Braga
