25W Amplifier (T495E)

Details
Written by: Newton C. Braga

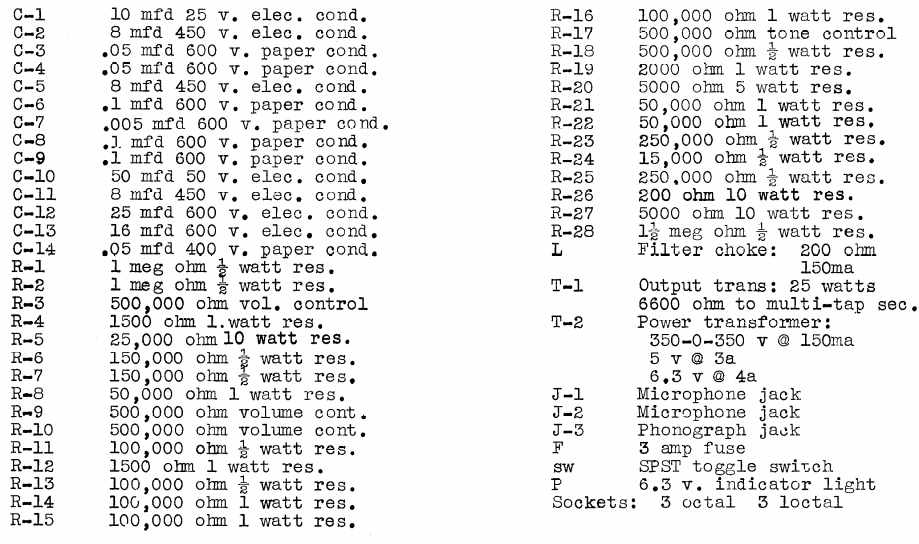

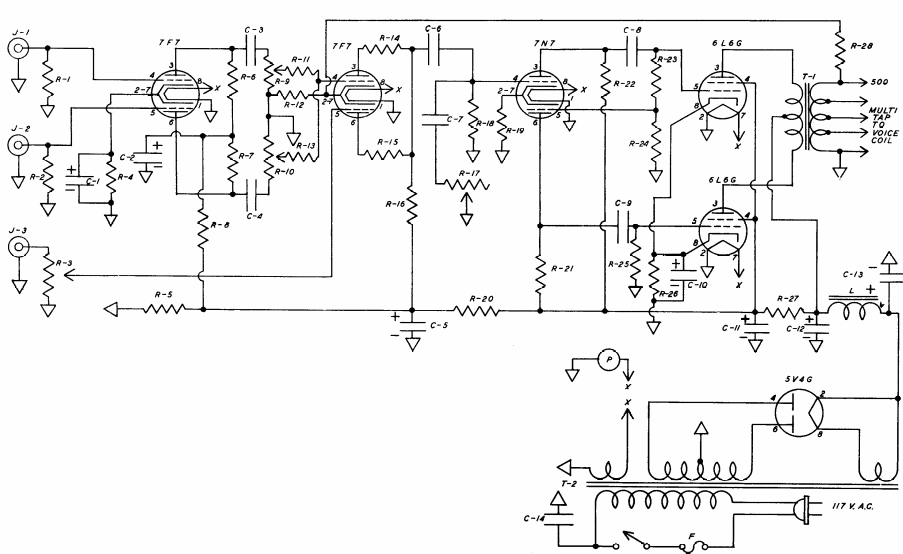

This amplifier was found in a tube equipment manual from 1947. The high-fidelity circuit has pentode tubes at the output and a source with transformer.
