Sensor with Thermoscope (T730E)

Details
Written by: Newton C. Braga

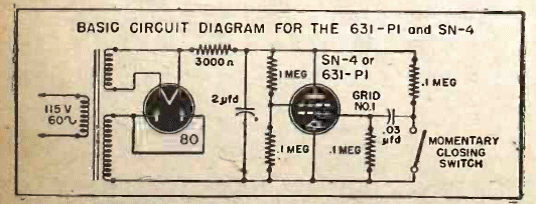

The thermoscope tube was a component from the 1940s. This circuit is an application of this component that indicates temperature. The circuit is from a 1943 publication. The tube consisted of a thermocouple.
