Tube Metal Locator (T448E)

Details
Written by: Newton C. Braga

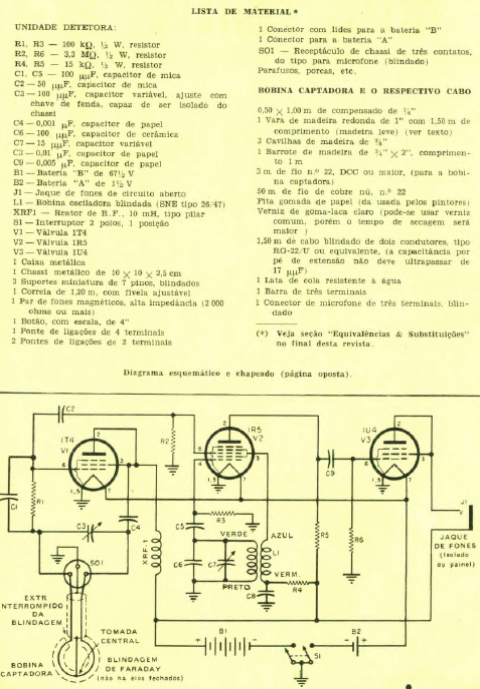

This sensitive tube metal locator was found in Popular Electronics from November 1957. The circuit uses three valves and two batteries, one of which is high voltage. Coil details are given in the bill of materials.
