Reflex receiver with speaker listening (T1565E)

Details
Written by: Newton C. Braga

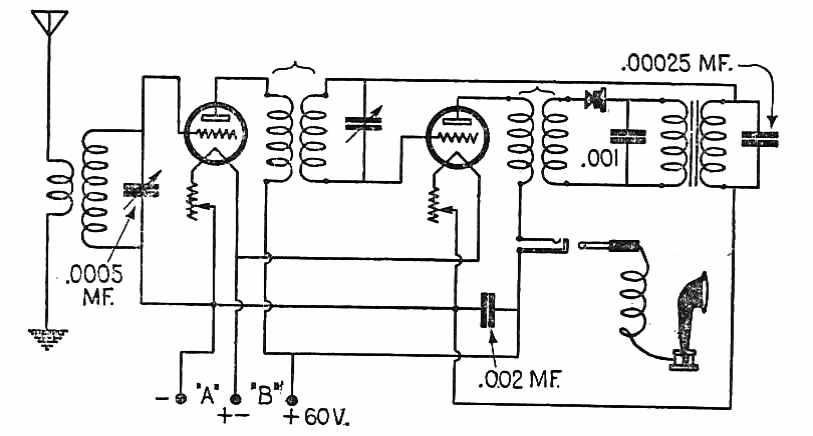

This interesting 1924 triode tube receiver was found in a documentation by Gernsback. Observe supply voltages. Coils are for tuned wavebands.




| Clique na imagem para ampliar |
