Pocket Transmitter (T1350E)

Details
Written by: Newton C. Braga

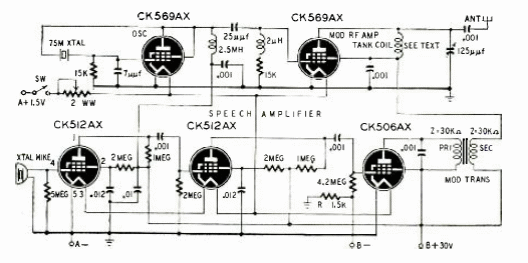

This transmitter for the 75-meter band was found in the Radio Electronics magazine of February 1949. The circuit is powered by a power source or battery and has the frequency controlled by a crystal.
