1975 FM Tuner (T1539E)

Details
Written by: Newton C. Braga

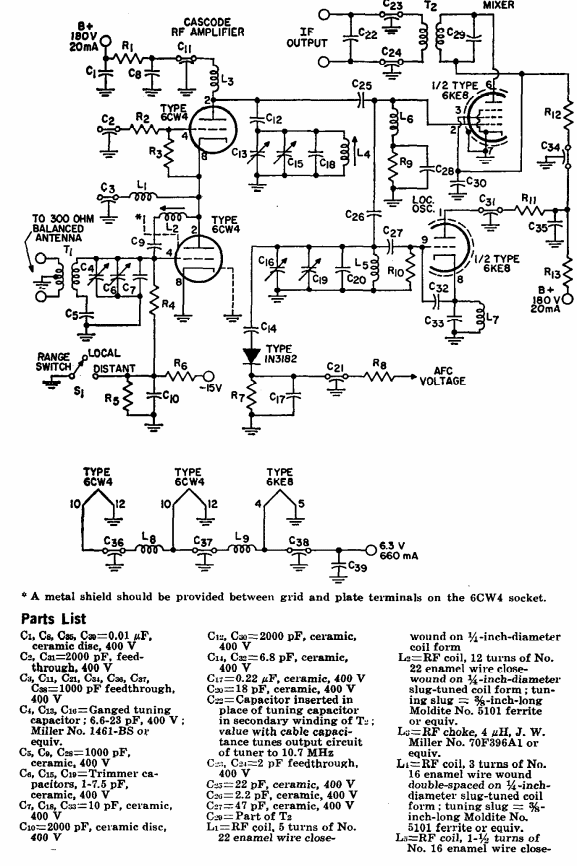

We found this circuit in the 1975 RCA Tube Manual. The circuit serves as a tuner for the FM band and information is provided for winding the coils.
