Tube receiver (T1604E)

Details
Written by: Newton C. Braga

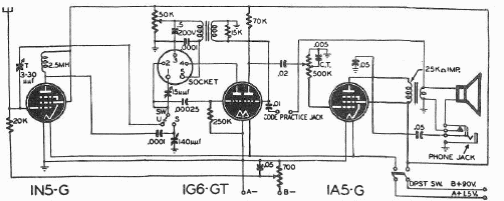

This 3-valve receiver, being a double one with speaker output, was found in a Radio Electronics from 1949. The circuit does not include the power supply.
