260W AM and FM Transmitter (T1177E)

Details
Written by: Newton C. Braga

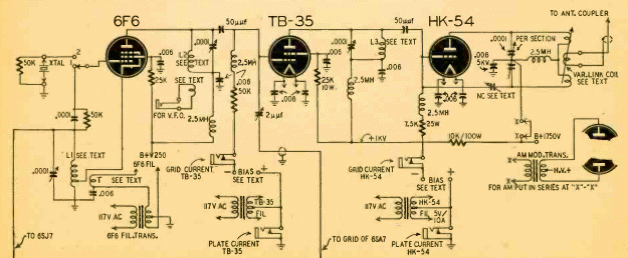

This powerful transmitter appeared in the Radio Craft magazine of August 1947. The 3-tube circuit required high supply voltages. The frequency was switched by changing coils.
