Italian radio receiver (T1268E)

Details
Written by: Newton C. Braga

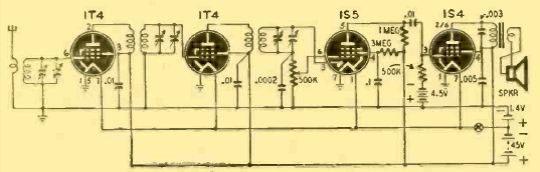

Published in the American magazine Radio Craft in 1948, this receiver is an example of an Italian medium wave radio. The 4-tube circuit has a loudspeaker output. Power is provided by two batteries.
