Photoelectric relay (T1761E)

Details
Written by: Newton C. Braga

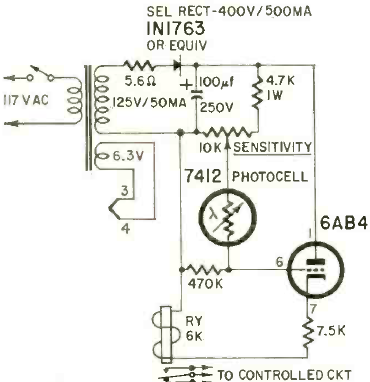

We found this circuit in a Radio Electronics magazine from September 1961. The circuit uses a relay according to the transformer voltage and the sensor is an LDR.
