2 tube push-pull amplifier (T1216E)

Details
Written by: Newton C. Braga

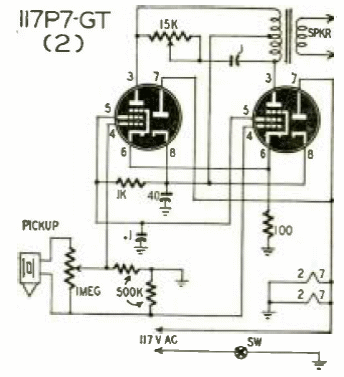

This interesting low-power circuit for a portable record player was found in Radio Craft in January 1948. The circuit has few watts of output and is mains powered.
