Inductance Bridge (T1230E)

Details
Written by: Newton C. Braga

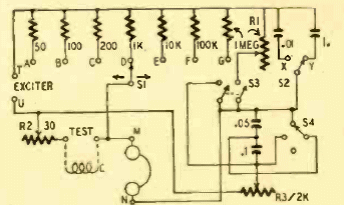

This inductance bridge was indicated to operate with the previous circuit. Circuit is from Radio Craft February 1948. Headphone must be high impedance of at least 2000 ohms.
