1947 Commercial Receiver (T1176E)

Details
Written by: Newton C. Braga

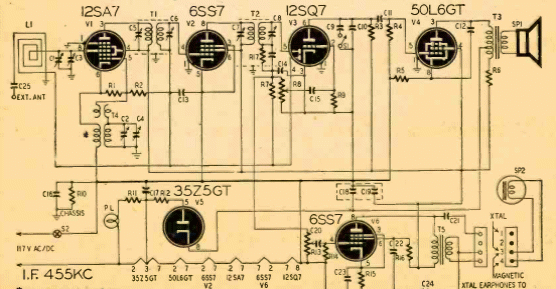

In the figure we have the diagram of a commercial radio with a 1947 loop antenna. The 6-valve circuit was of the AC-DC type, that is, with a power source without a transformer. The tuned band was medium wave.
