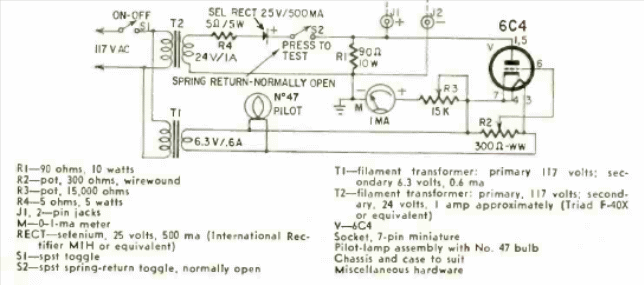

This circuit is from an article in Radio Electronics magazine from October 1958. The circuit is for testing electrolytics that operate at high voltages depending on the source.
| Clique na imagem para ampliar |
Electrolytic tester (T1702E)
- Details
- Written by: Newton C. Braga
