Tube Transceiver (T1294E)

Details
Written by: Newton C. Braga

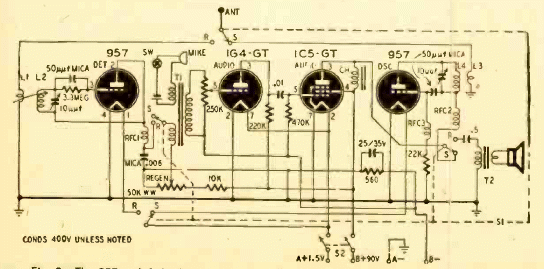

Indicated to be used in motorcycles, this circuit came out on Radio Craft in August 1948. The 4-tube circuit was powered by two batteries, one high voltage for +B and the other low voltage for the heaters.
