Modulator Amplifier (V1574E)

Details
Written by: Newton C. Braga

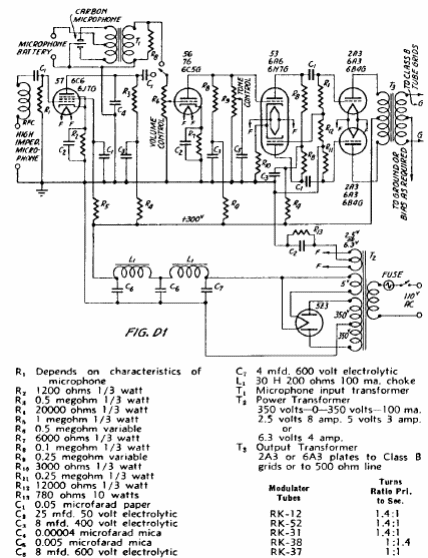

This circuit is from a 1938 tube manual. Transformers are the critical components. Component values are given.
