TV Remote Control (T1754E)

Details
Written by: Newton C. Braga

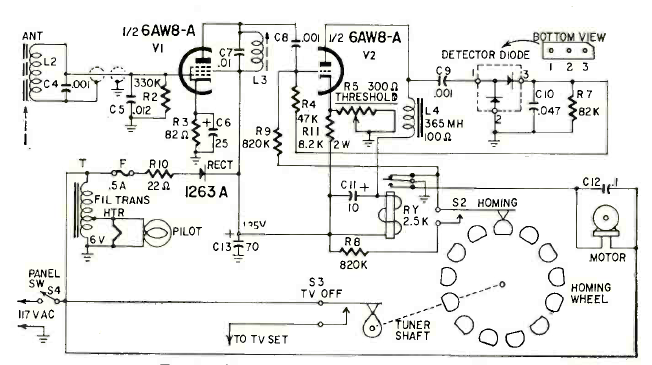

This TV remote control receiver uses a ratchet system to activate an old drum-type selector to change channels. A common system at the time. The circuit is from a Radio Electronics from February 1961.




| Clique na imagem para ampliar |
