4-tube reflex (T1662E)

Details
Written by: Newton C. Braga

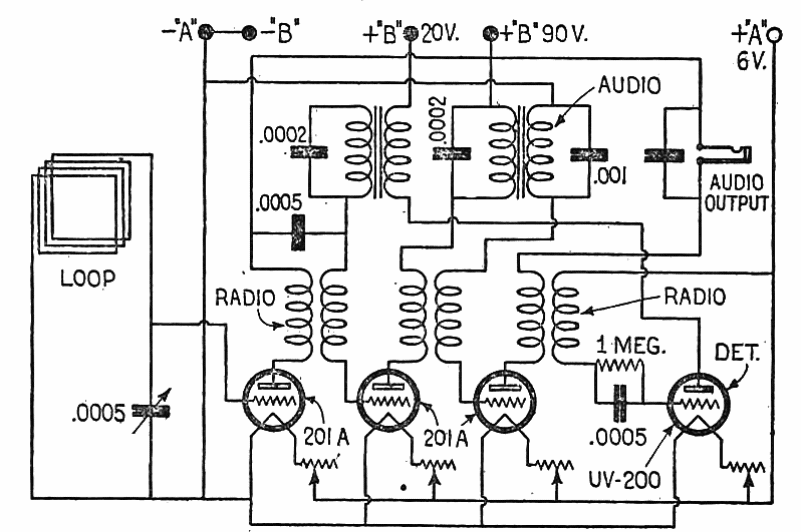

This circuit that uses a loop antenna was found in a 1924 publication. The circuit has several supply voltages and sets of audio and RF coils.
