Small Power Amplifier (T1679E)

Details
Written by: Newton C. Braga

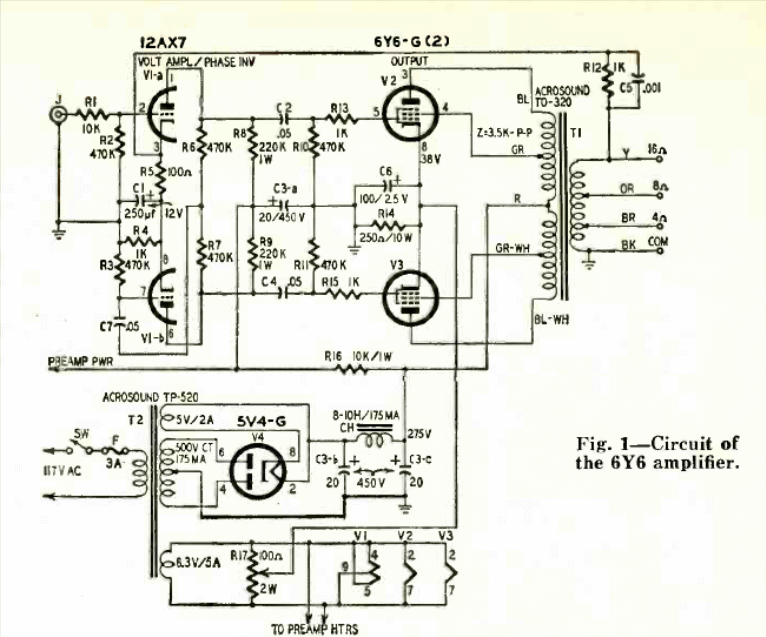

This small tube amplifier appeared in Radio Electronics magazine in February 1958. The circuit is powered by the mains with a power transformer and output with different impedances.
