25W Amplifier (T1698E)

Details: Written by: Newton C. Braga

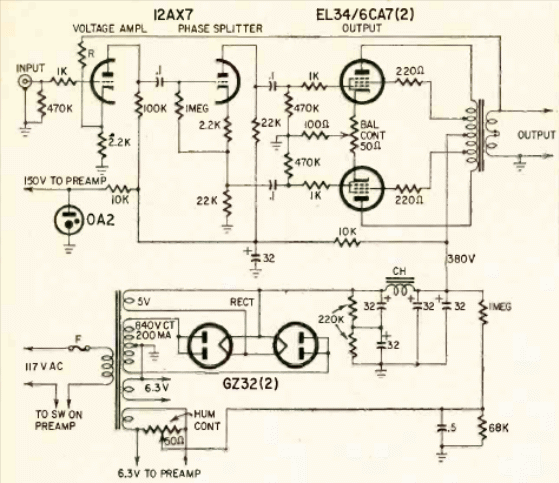

This Panasonic amplifier appeared in the Radio Electronics magazine of September 1958. The circuit had 2 6CA9 at the output and the source with two rectifier tubes.
