10W Commercial Amplifier (T1696E)

Details
Written by: Newton C. Braga

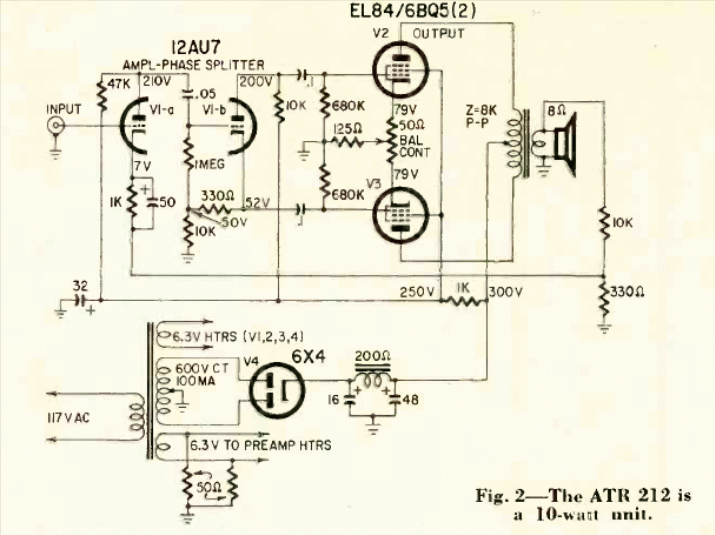

This 10W commercial amplifier circuit was found in the September 1958 Radio Electronics magazine. Its power is 10W with excellent sound quality.
