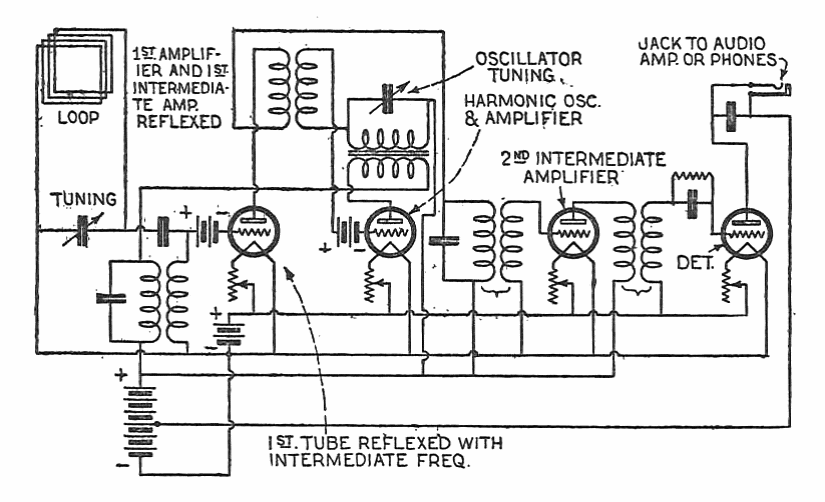

Using 4 tubes, this 1924 receiver combines new technologies as an intermediate frequency stage that was already beginning to appear. Listening is via phone and battery power.
