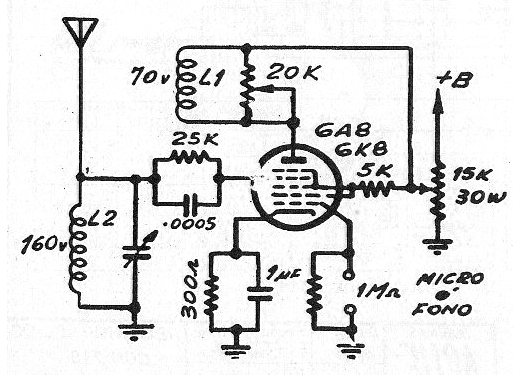

This MW transmitter sends the signals from a pick-up transducer in a phonograph to any MW receiver. L1 is formed by 70 turns of 28 AWG wire on a 2,.5 cm of diameter cardboard or PVC tube and the antenna is a piece of wire 80 to 120 cm long. The circuit must be powered from a 100 V to 250 V supply.
