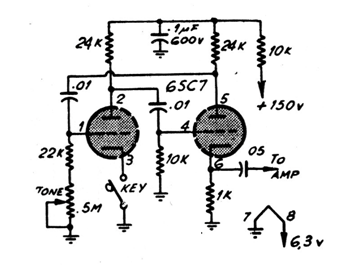

This circuit generates an audio signal that can be used for the practice of telegraphy. The tone potentiometer can be 470k and the power can be obtained from the amplifier itself with which the circuit will operate. The 24k resistors can be 22k which is the current standardized value. Other double triodos can be used.
