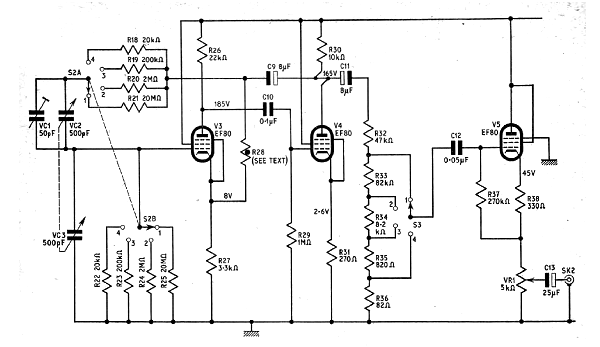

This circuit is from a 1968 documentation. The power supply is made with voltages from 200 to 300 V and the valves can be equivalent. The accuracy of the signals depends on the resistors used.
Signal Generator (T210E)
- Details
- Written by: Newton C. Braga
